The Chevrolet 454 Was The Ultimate GM Pickup Truck Big Block V8

 The Mark IV big block V8 engines produced by General Motors in the 1960s and '70s are the stuff of legend among muscle car enthusiasts. This was the family of motors that gave us the famous 396 cubic inch eight-cylinder big blocks along with the 427 (including the L88 and aluminum ZL1 versions).

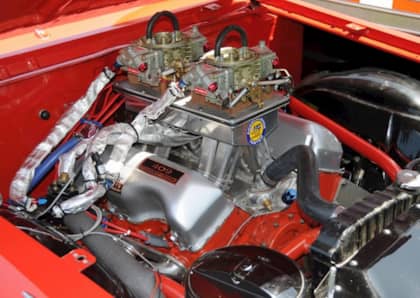

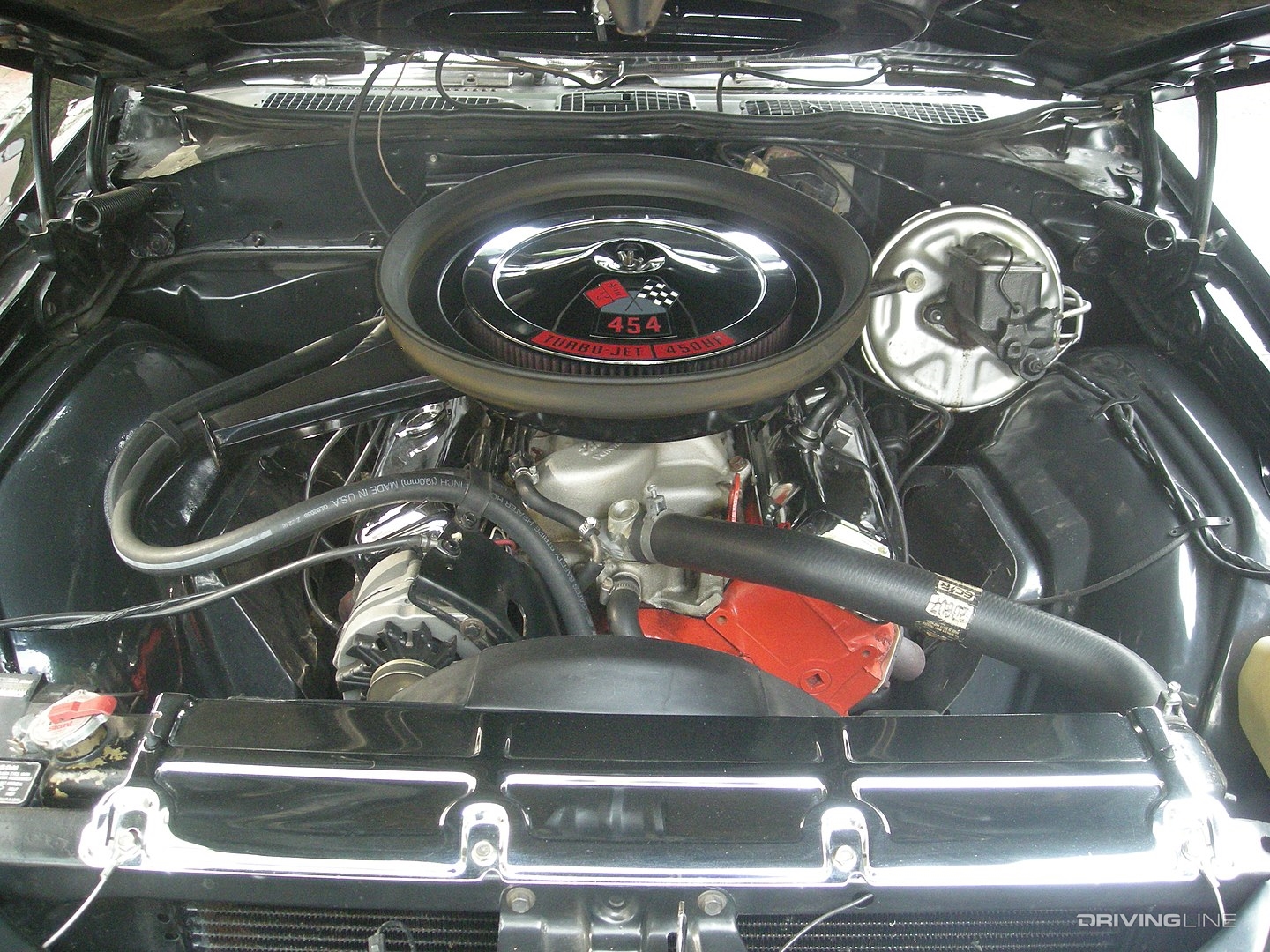

454 Big Block V8

In 1970 the largest Mark IV motor arrived on the scene. Displacing 454 cubic inches it was first offered in the Chevrolet Corvette, producing up to 450 horsepower in ultra-rare LS6 specification. This motor would eventually find its way into the Monte Carlo and Chevelle coupes, as well as the El Camino and the Caprice.

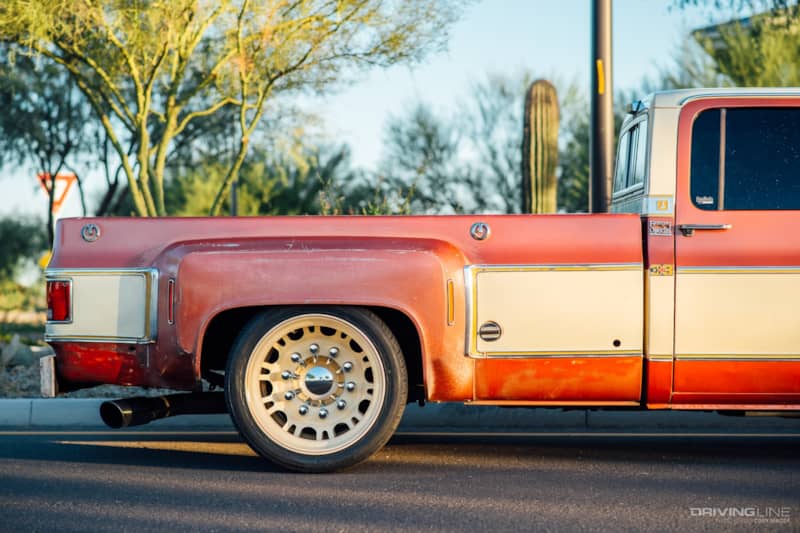

Chevrolet duallie big block

Its most enduring application, however, wasn't in the muscle car world, where emissions regulations and soaring insurance rates relegated its run to a mere two years of street dominance before detuned versions began to proliferate. Instead, the 454 cubic inch V8 would find a near-permanent home in Chevrolet and GMC trucks and SUVs, starting in the 1970s and stretching all the way past the year 2000 as one of the last of the GM big block V8s to be offered as a factory option.

A Strong Start

The term 'Mark IV' referred to the motor's status as the fourth evolution of a large displacement engine concept that dated all the way back to the 1950s. The differences between the original 409 cubic inch big block (known as the W-series) were numerous, but they both shared the same bore spacing. Cylinder heads adopted a wedge chamber in place of the W-motor's chamber-in-block setup, angled spark plugs and revised valve placement provided an improvement in high rpm efficiency and power, and the engine gained significant weight over the W.

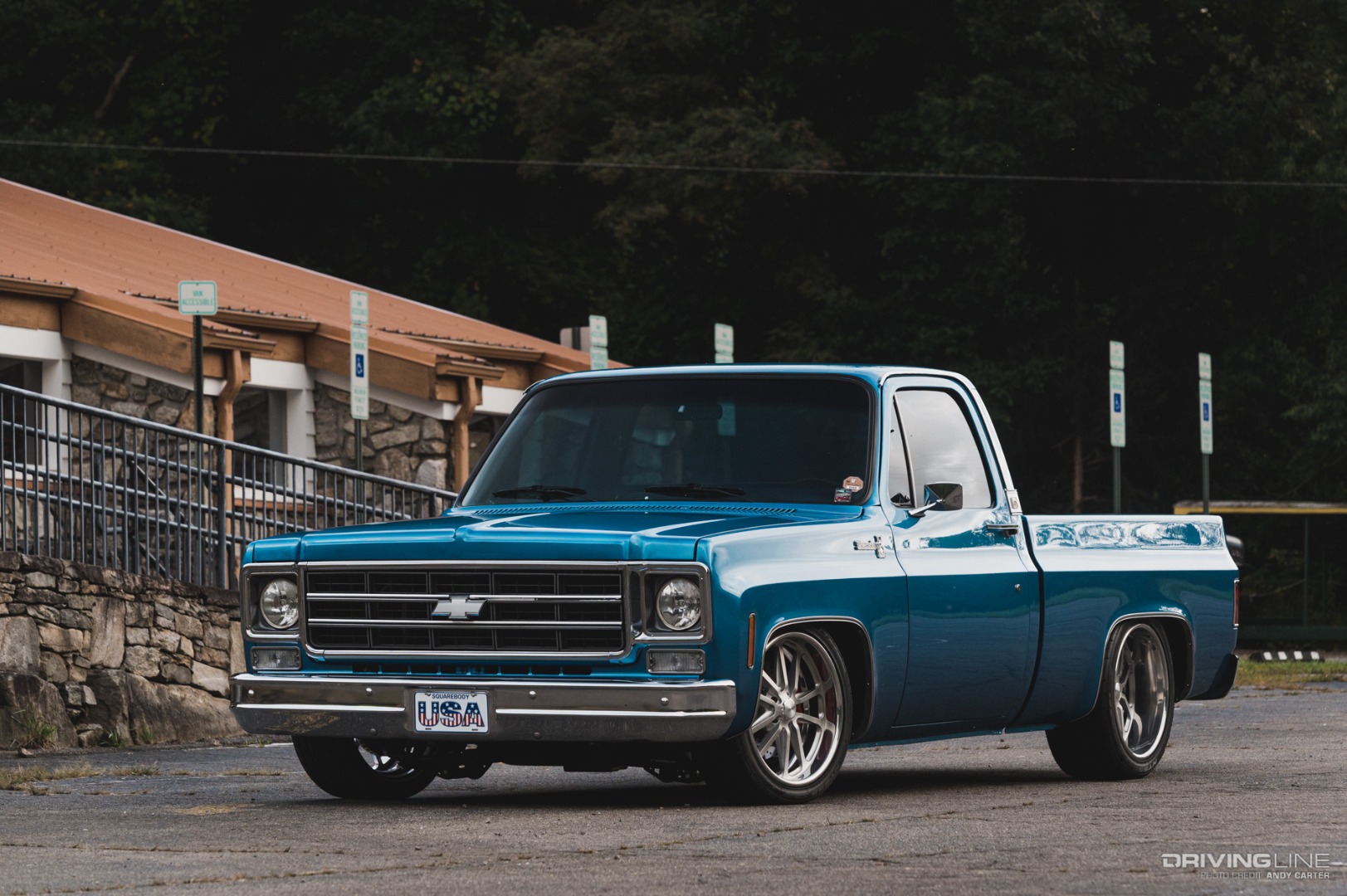

Chevrolet C10 on Nittos blue front 3/4

In 1973, with the 454 having left the high performance world and migrated over to sedans, personal luxury coupes, and 'utes, GM decided to also add it to the pickup truck order sheet at Chevrolet and GMC. This coincided with the square body style and  new platform for each brand's pickups, which would run from 1973 all the way to 1991.

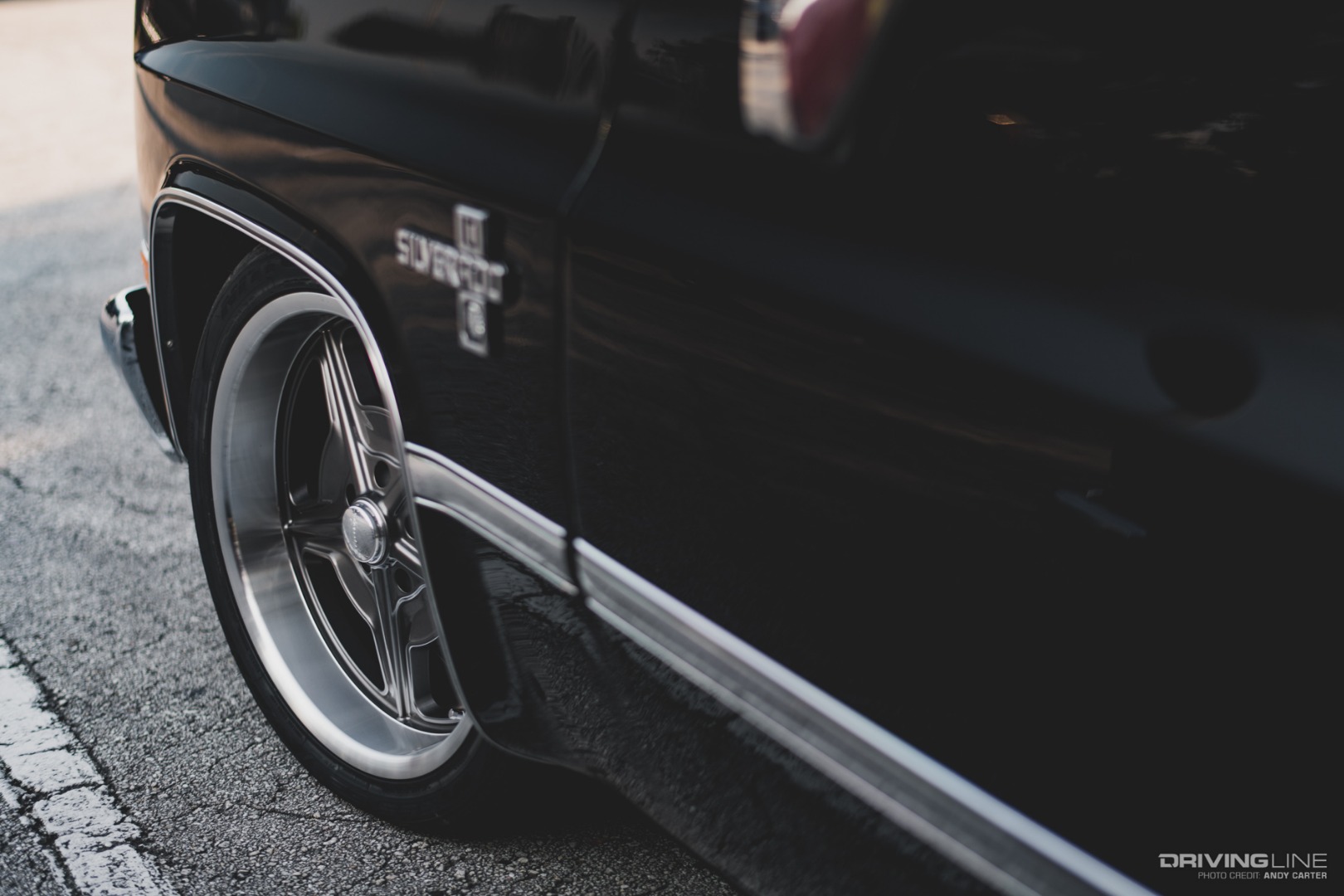

Chevrolet C10 on Nittos black wheel focus

These versions of the motor were initially rated at 240hp and 355 lb-ft of torque, and were aimed specifically at buyers who planned to tow or haul a heavy load. This explains why Chevrolet and GMC half-ton big blocks were largely limited to rear-wheel drive versions of the truck, with most installations found instead in three-quarter and full-ton models. There were also some unique models featuring the 454 towards the middle of the decade, such as Chevrolet's 'Big 10' truck that towed with gross vehicle weight rating as a way to offer a version of the big block unencumbered by a catalytic converter or other EPA pollution restrictions.

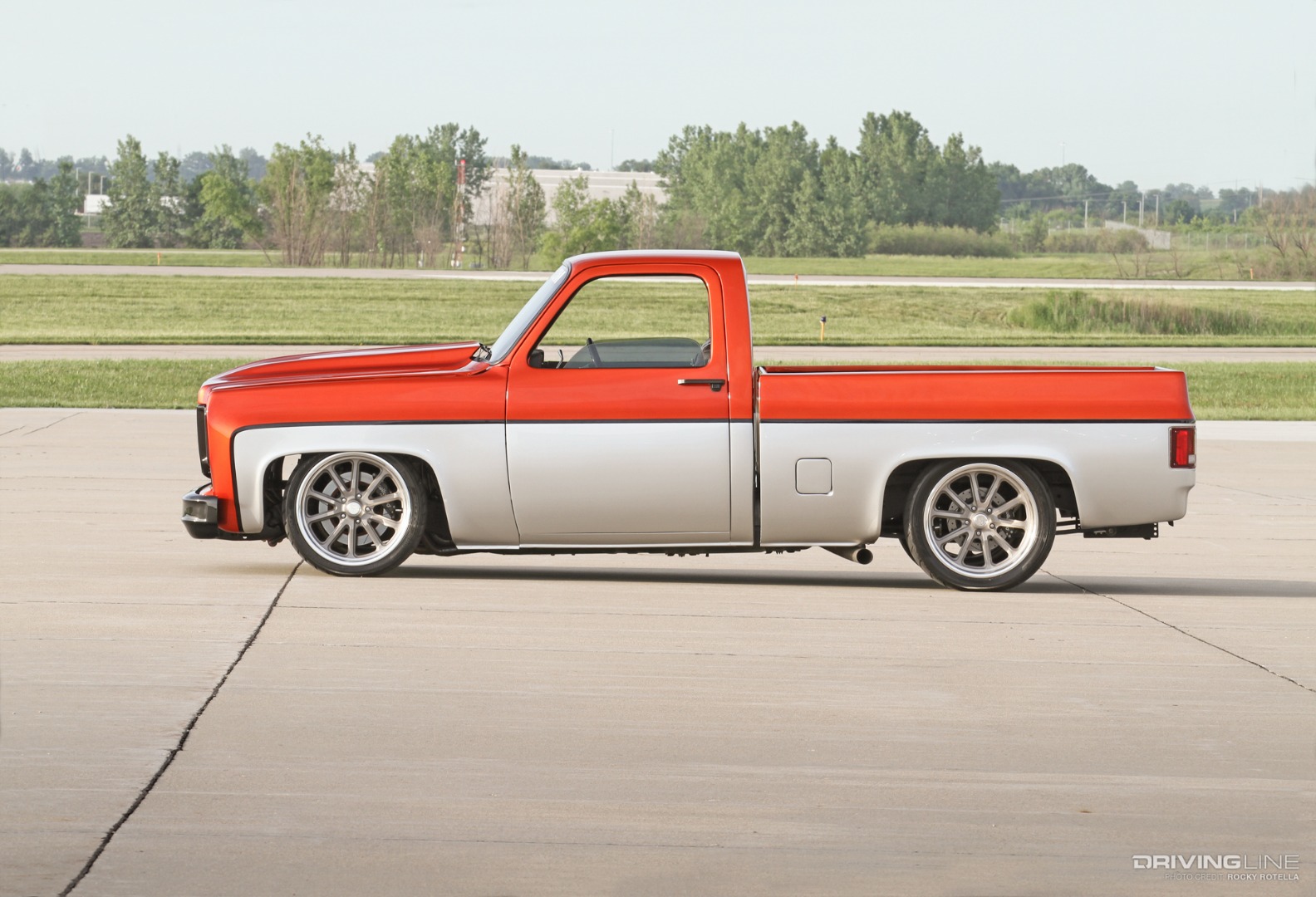

Chevrolet C10 on Nittos orange side

On the SUV side, despite sharing its platform with the C10 the Chevrolet Blazer and GMC Jimmy never received factory-installed 454 engines, although some dealer-sourced big blocks did make it into customer hands. The larger Suburban, on the other hand, made the 454 an option nearly across the board.

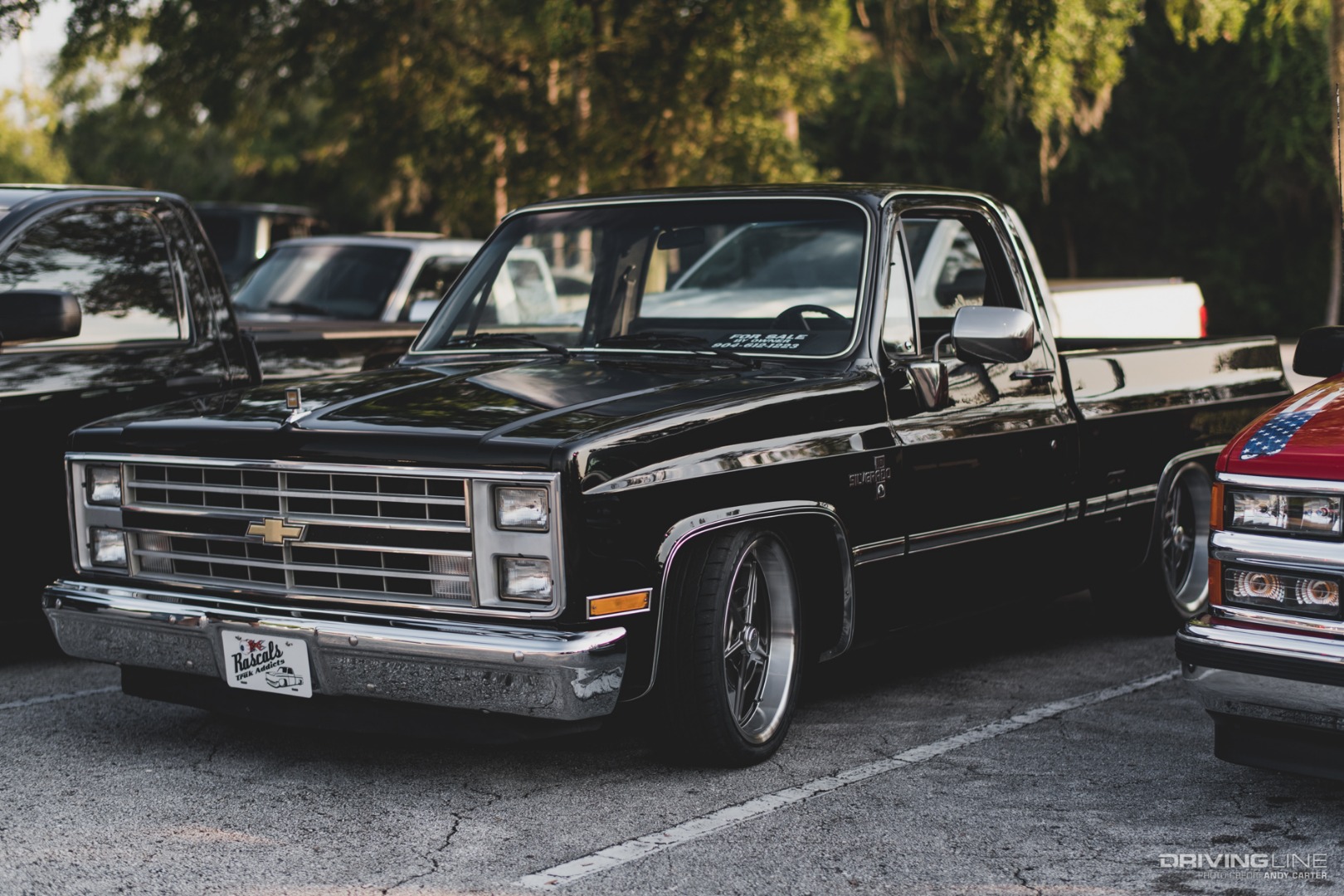

Chevrolet C10 on Nittos black front 3/4

As the decade wore on the Chevy 454 engine added a few extra lb-ft of torque while dropping horsepower only slightly, making it a relatively stable oasis of output in an era where even once proud muscle cars like the Camaro had trouble cracking the 200 horse plateau.

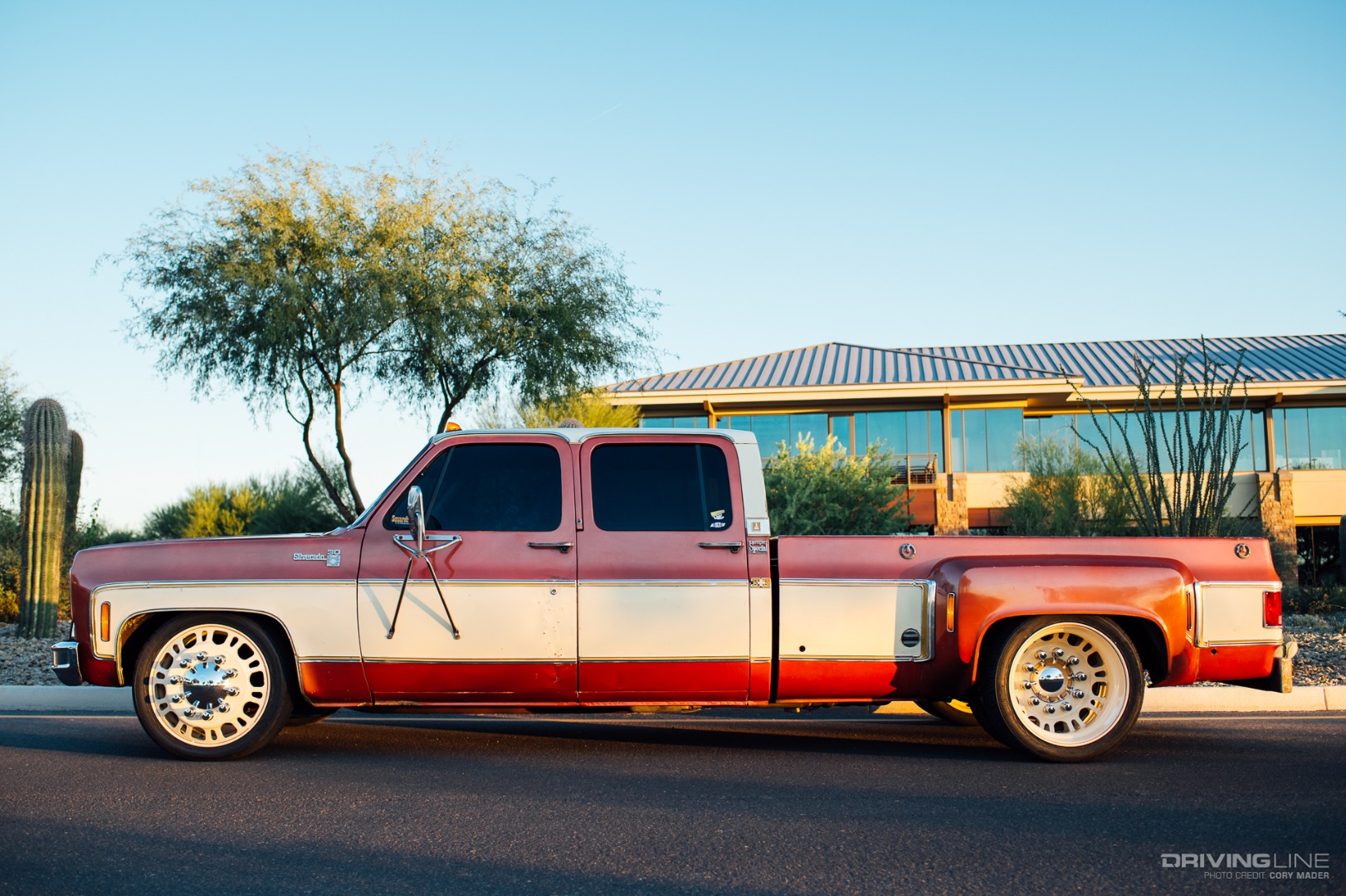

Chevrolet C30 on Nittos duallie

The biggest change for big block trucks occurred in 1979, when GM removed the 454 from the half-ton order sheet and made it the exclusive province of its heavy-duty truck line-up. This decision would hold throughout the 1980s, with the Chevy 454 gaining a fuel injection boost in 1987. This motor, dubbed the L19, featured the same cast iron heads as the motor it replaced and maintained the same hydraulic flat tappet lifter cam, with the primary update being a throttle-body FI system. Output climbed as high as 255 ponies, and torque peaked at 405 lb-ft, helping it maintain its role as a workhorse (although more modest tunes were also available).

Fuel Injection, Then Vortec

Two further evolutions of the pickup truck 454 big block were waiting for Chevrolet and GMC fans. The first was the Generation V motor, which in 1991 transitioned to four-bolt mains across the board (even the L19 had offered the availability of two-bolt main design), as well as a hydraulic roller cam and a stronger block and cylinder case design. Power remained roughly the same, checking in at 230 horses and 380 lb-ft of torque.

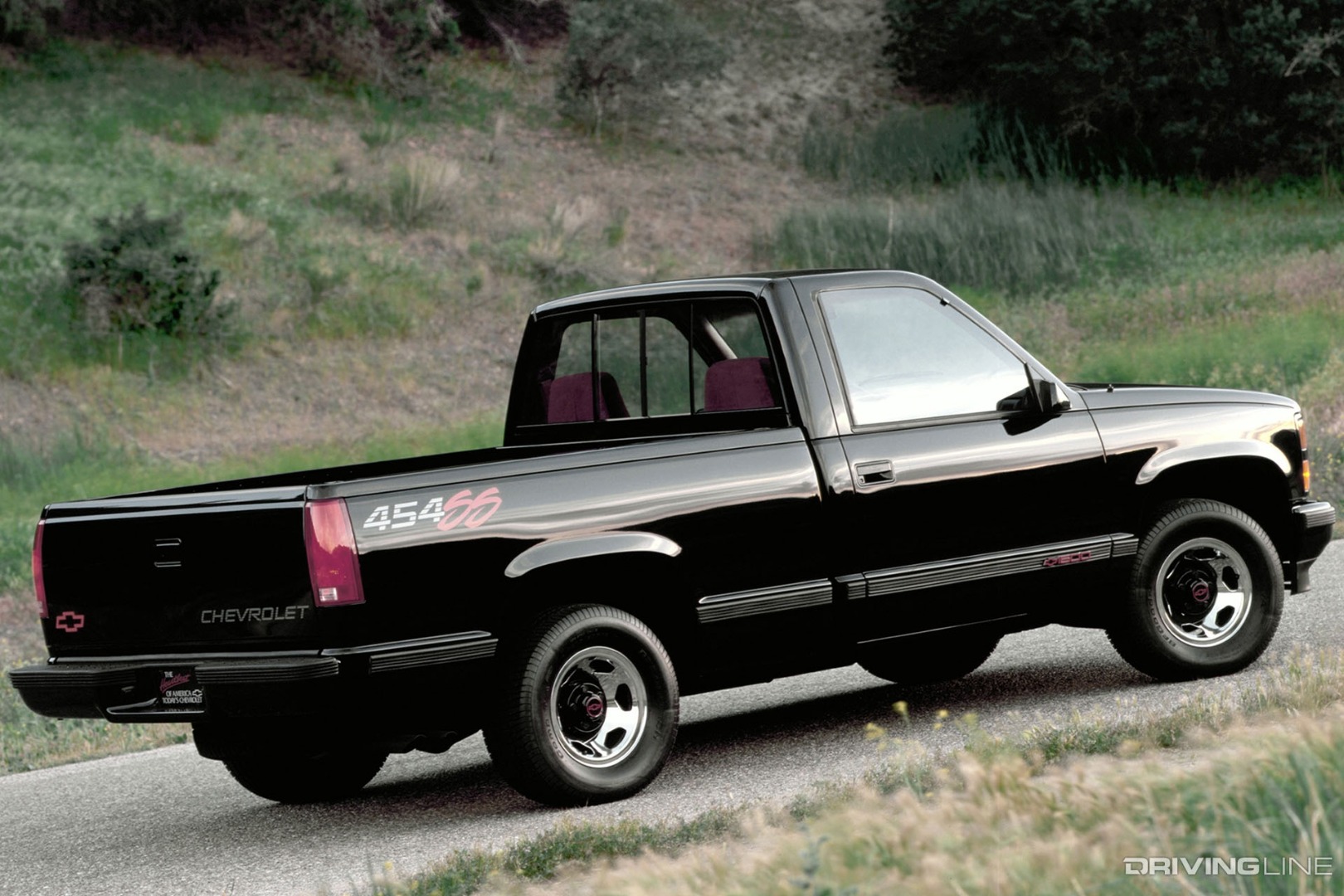

Chevrolet 454 SS truck

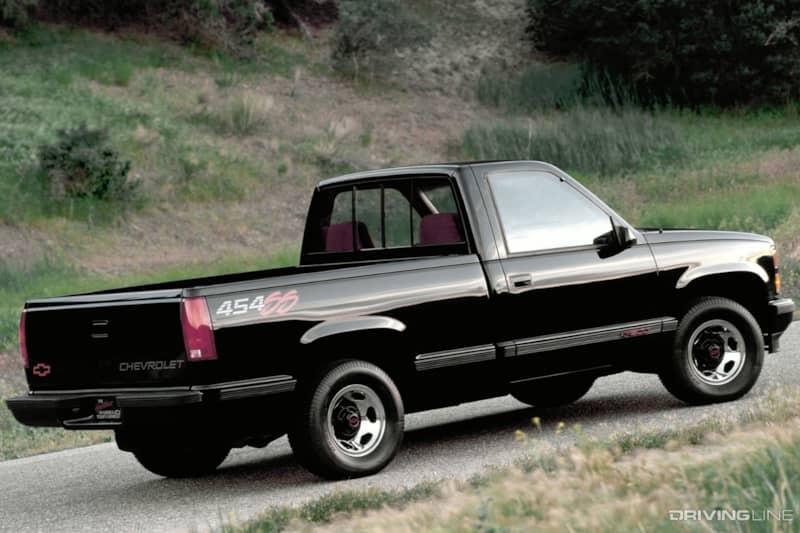

In 1990 Chevrolet would offer the 454 SS, a half-ton truck that borrowed the 454 V8 from the heavy-duty line-up for the first time in more than a decade. Also featuring quicker steering and a lowered suspension system (with upgraded swaybars and sport shocks), the engine would see an upgrade to 255hp the following year. The 454 SS was built until 1993.

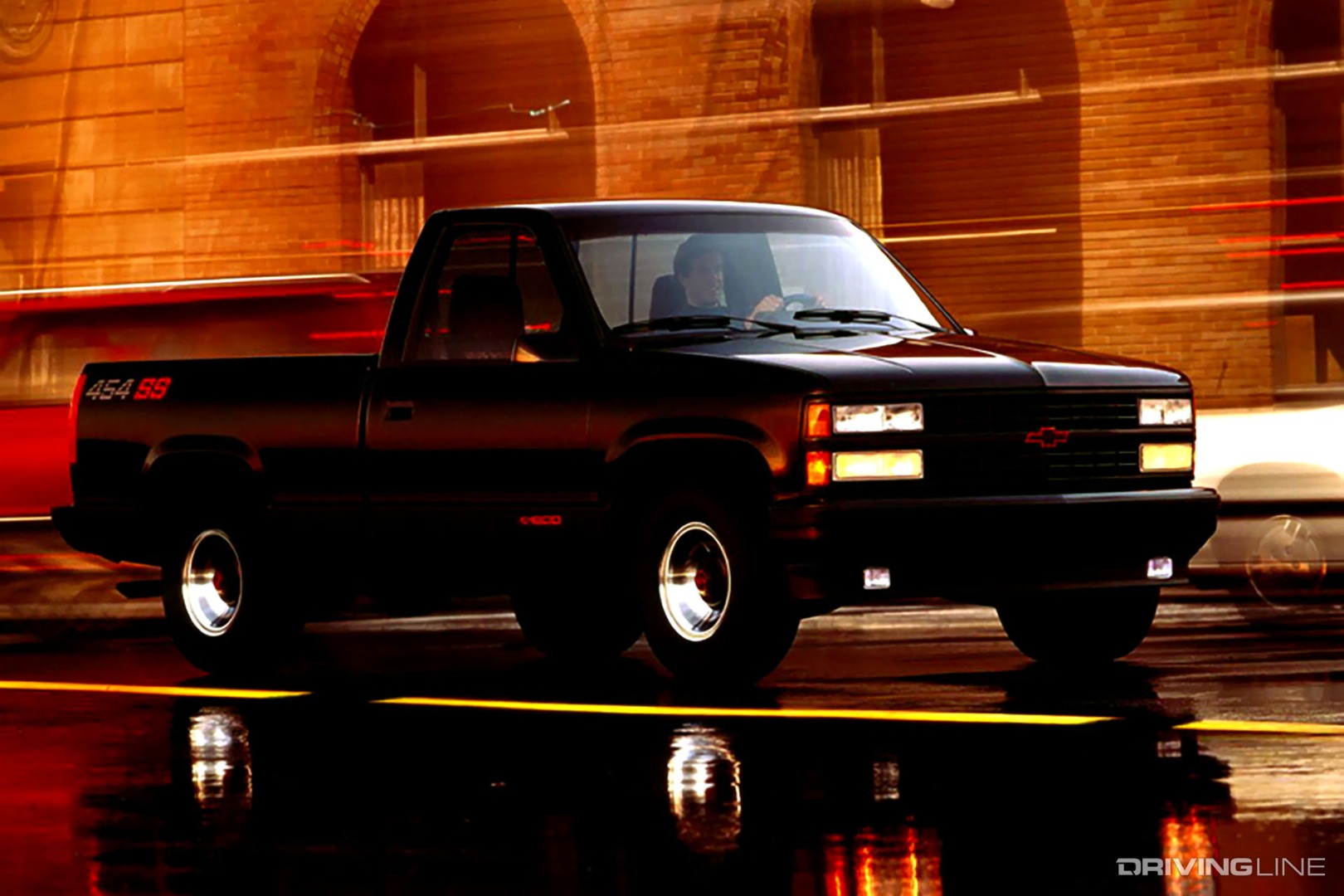

Chevrolet 454 SS pickup black

After a year's hiatus in 1995, the 454 big block Chevy would return in its third, and final, iteration the following year. The Generation Six, or 'Vortec' version of the 454 was again reserved for 2500 and 3500 series trucks, but it added a roller cam and multi-port fuel injection, each of which were part of the overall Vortec family of small blocks that had also appeared at roughly the same time in GM's pickup, SUV, and van portfolio.

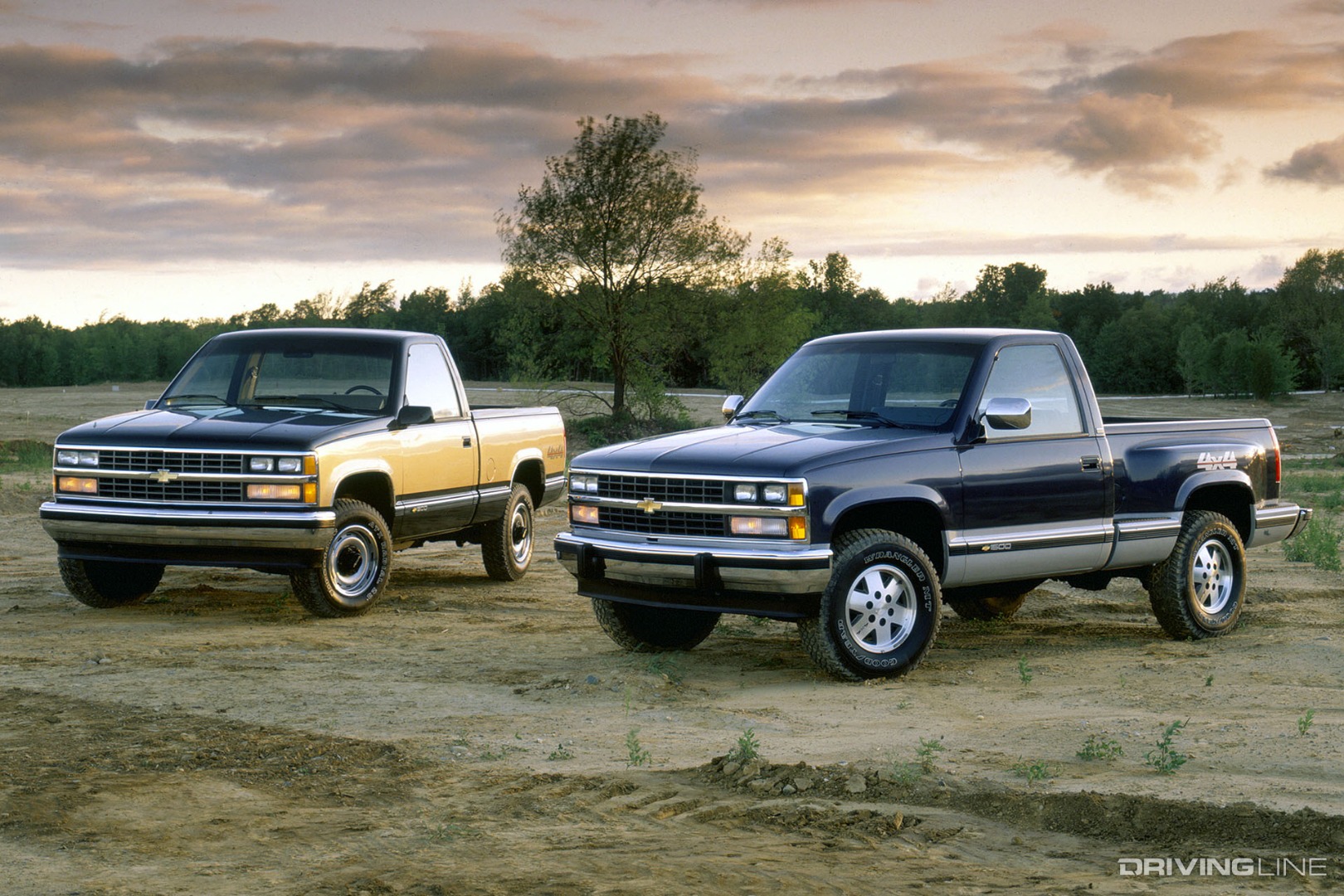

Chevrolet pickups in field

The revised 454 (now known as the Vortec 7400) was good for a whopping 290hp and 410 lb-ft of torque, and it was offered until 2001 (the final year for commercial and recreational vehicle use).

Uncommon Performance

Today the Chevrolet truck big block is one of the most overlooked high performance engines out there. In the face of the LS V8's popularity, fewer and fewer engine builders are interested in the extra weight of a big block when similar power can be had from a more modest small block.

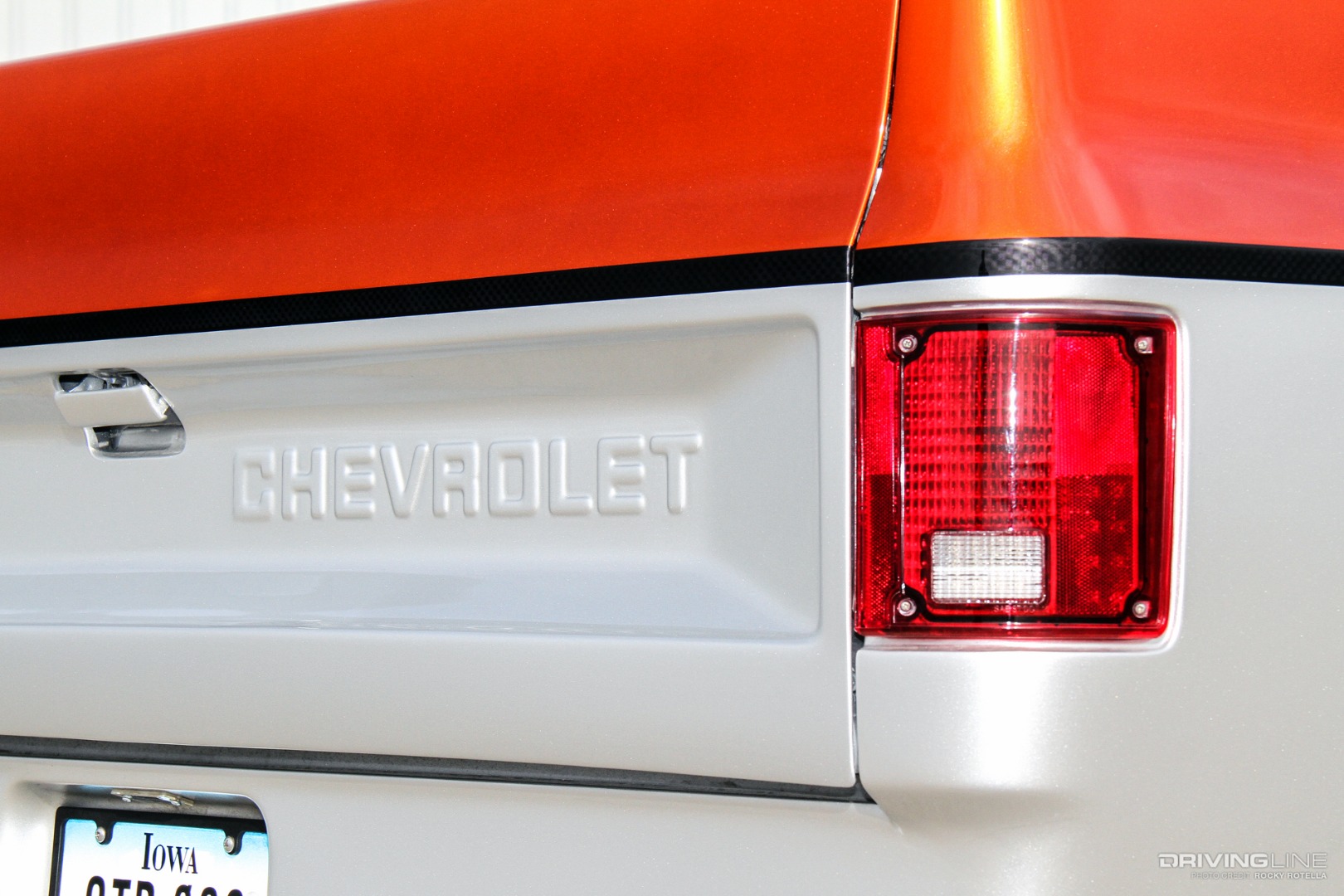

Chevrolet C10 tailgate

That being said, with ultra-cheap wrecking yard purchase prices big blocks can offer an intriguing alternative to crate motors and the ubiquity of the LS. It's often possible to churn out between 500 and 700hp on a relatively small budget, with reams of torque from the 454 as an added bonus. A more aggressive camshaft, increased compression, and Vortec heads are common ways to wake up the big block and reap high-performance rewards.
