Unkillable Diesels: 7.3L Power Stroke

Anyone familiar with the internal combustion engine knows that the diesel-burning variety tend to outlast the rest. Low-rpm operation, beefier internal parts and running on an oil-based fuel will do that for you, but even though virtually all of these compression ignition power plants go “the distance,” some of them never seem to die. The 7.3L Power Stroke is one such engine. You might know it as the V-8 diesel option offered in Ford pickups from ’94.5 to ’03, but (in one form or another) this same 444ci hunk of iron also powered countless box trucks, school buses and ambulances.

It was given a B50 life of 350,000 miles, which in time proved modest. Out in the wild, 400,000 miles is a virtual guarantee for any properly maintained 7.3L, and many more go well beyond that number. A simple yet robust design enabled its unkillable reputation and even its HEUI injection system—which was originally feared for its complexity—proved highly durable in the long-run. A lack of emission control devices also contributed to the 7.3L’s outliving two of its successors (the 6.0L and 6.4L Power Stroke). To find out the rest of the 7.3L’s indestructible story, keep reading.

The Ultimate Fail-Safe

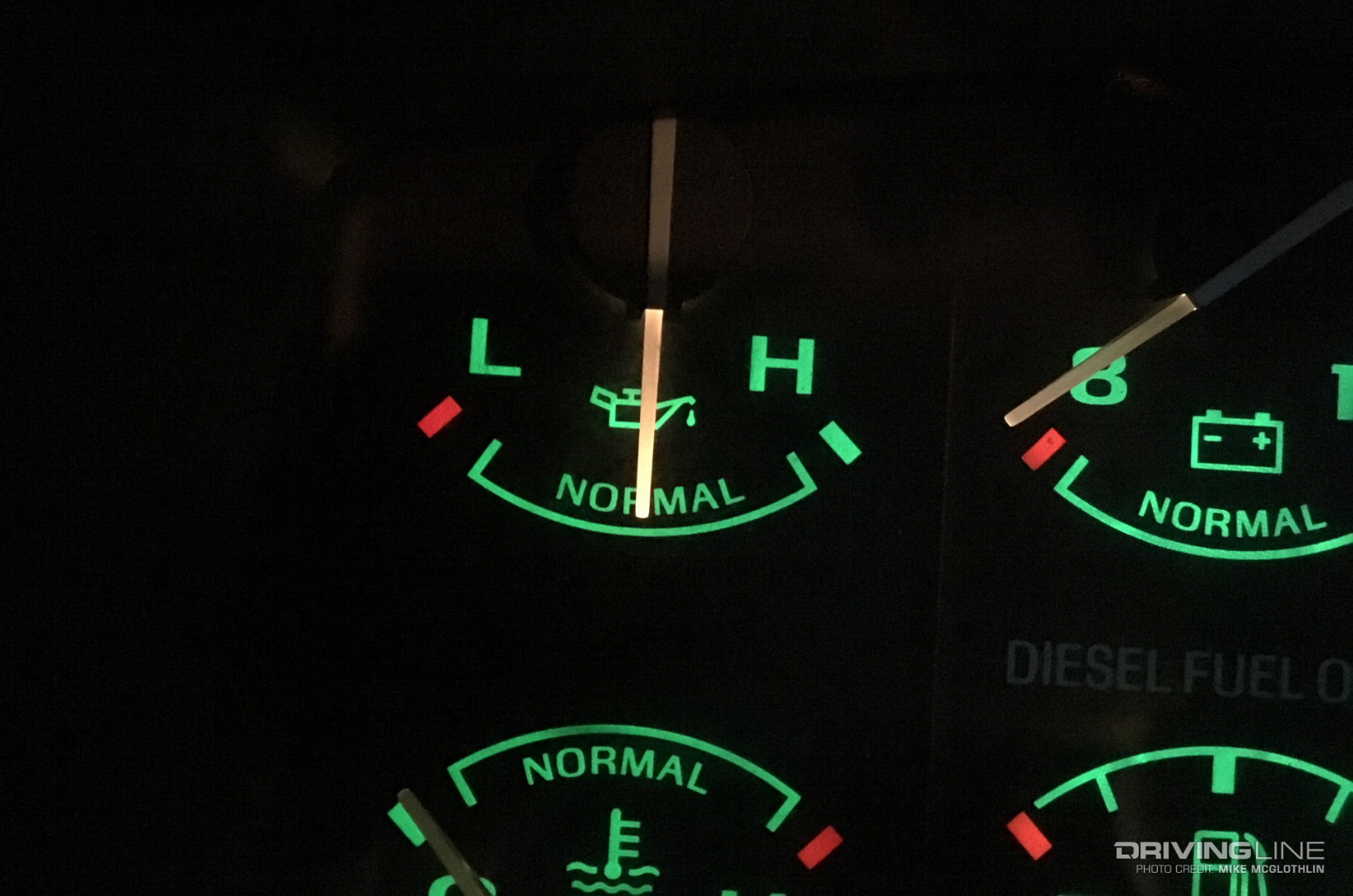

7.3L Power Stroke Oil Pressure Gauge

When an engine’s fuel injection system revolves around the use of hydraulic actuation (HEUI: hydraulically actuated, electronically controlled unit injector), the engine won’t run without the presence of engine oil. With HEUI injection technology being the brainchild of Caterpillar, a global supplier of both diesel engines and heavy-equipment, you can bet this fail-safe was baked into the cake in order to protect its bottom line by avoiding expensive overhauls. As it pertains to the 7.3L Power Stroke, once the engine oil level drops below 7 quarts (the engine holds 14) the high-pressure oil system that’s required to fire the fuel injectors will cease to function, thereby safely shutting the engine down.

Injectors That Rarely Fail

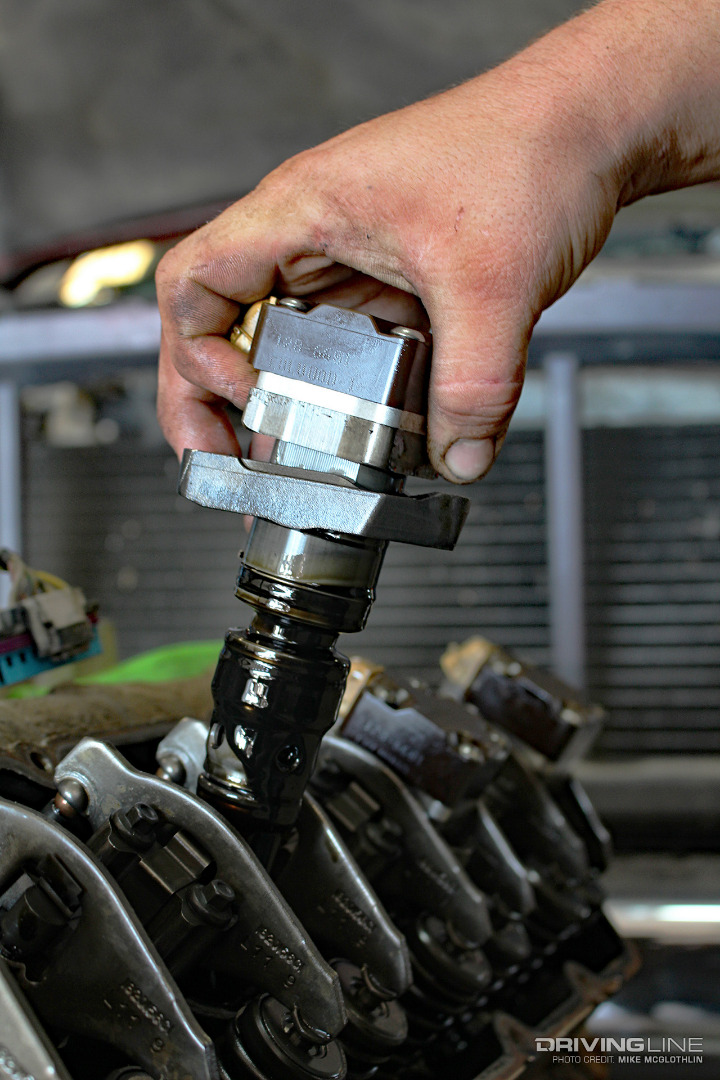

Power Stroke Diesel HEUI Fuel Injection

Despite the HEUI system’s complexity, the individual pieces employed in the 7.3L proved highly durable (as did similar components found in other Navistar and Caterpillar engines from the same era). Many injection shops cite the 200,000-mile mark as the ideal time to overhaul a 7.3L HEUI injector, but a set that’s been properly cared for can last much longer than that. Even today, diesel repair facilities are removing original injectors (identified by their black O-rings) from 7.3L engines that’ve been in service for 20 years or more.

Its Lack of Power Promoted Its Longevity

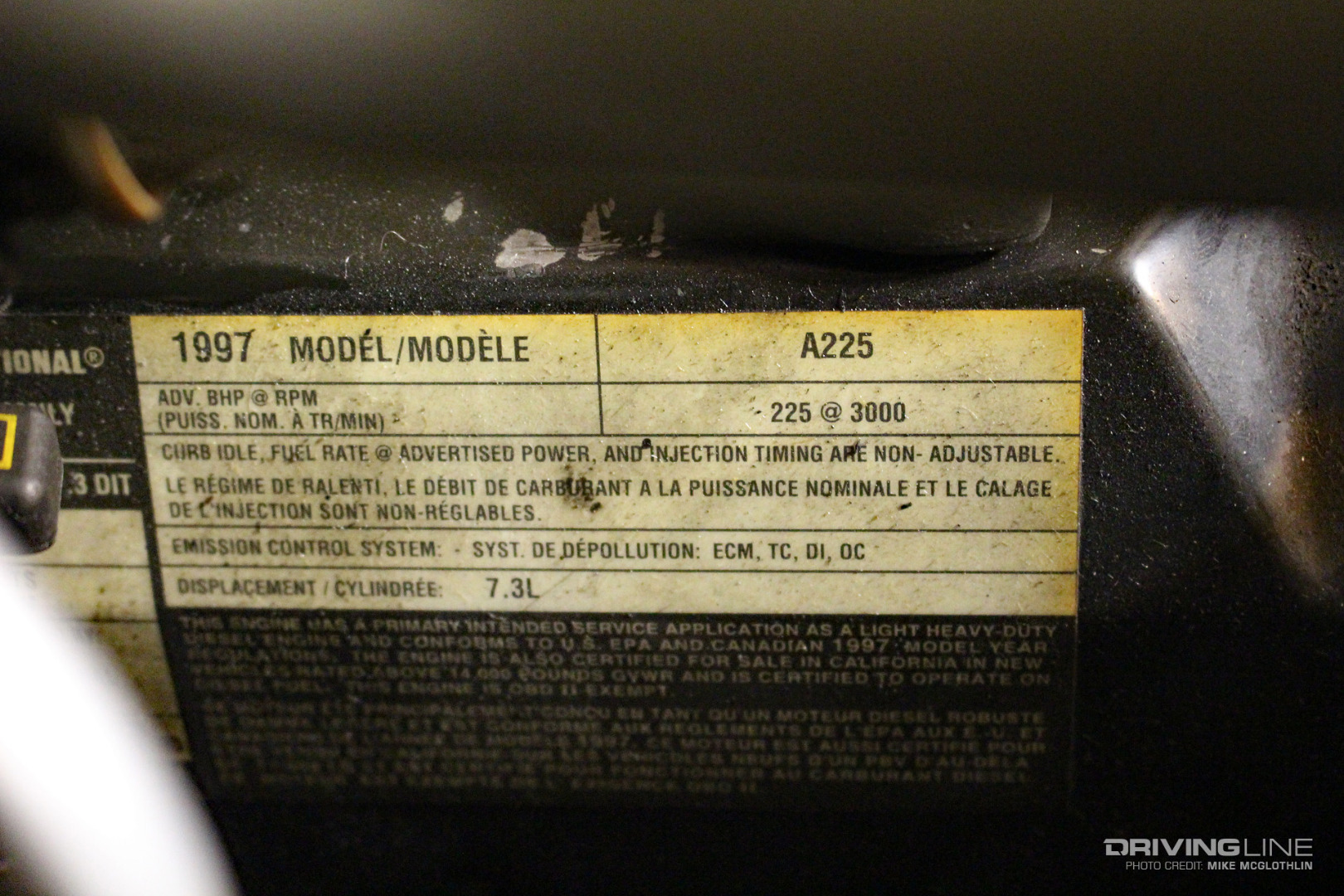

Horsepower Emissions Label Power Stroke Diesel

It’s hard to fall down when you can’t even stand up. With an introductory power rating of 210 hp and 425 lb-ft (’94.5), and making 275 hp and 525 lb-ft on its best day (‘01), the 7.3L Power Stroke didn’t make enough power to hurt itself. Especially in stock form, the forged-steel crankshaft and connecting rods were more than capable of handling whatever cylinder pressure they were forced to cope with.

Simple Design

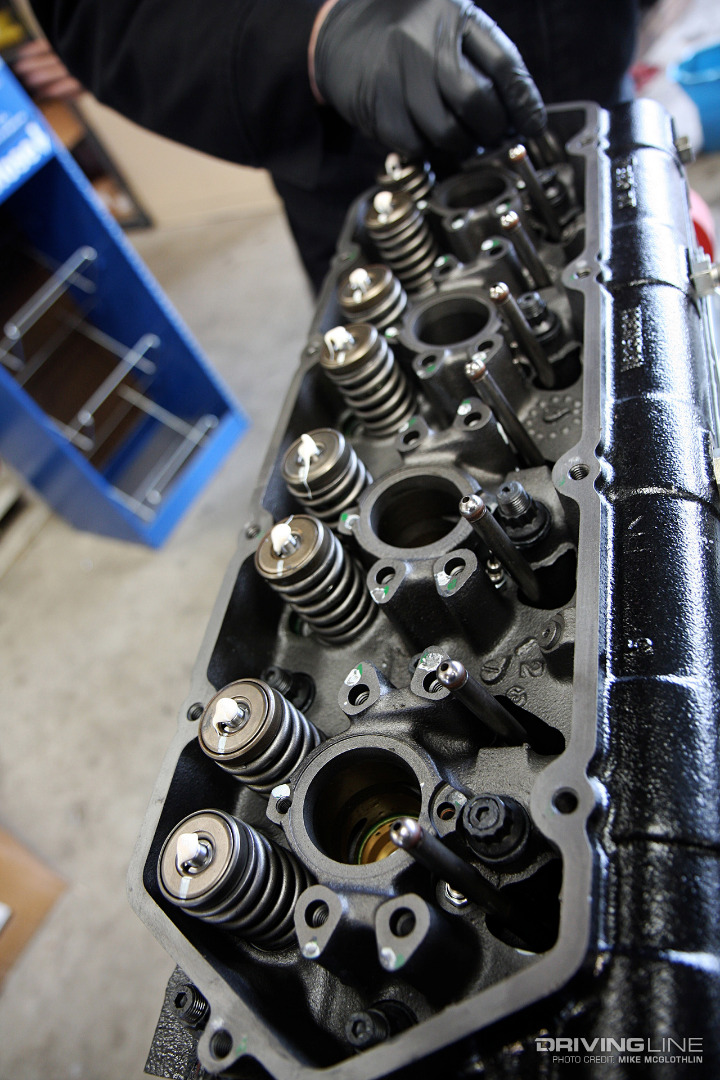

2001 Power Stroke Cylinder Head

Fortunately, Navistar didn’t attempt to reinvent the wheel when designing the 7.3L. The block and heads were cast from gray iron, traditional “Mexican hat” style cast-aluminum direct injection pistons were used and a two valve per cylinder arrangement kept the valvetrain simple. Going a step further than that, hydraulic lifters were part of the deal, which in addition to their self-adjusting operation, proved very forgiving as well.

Safe and Secure Head Gaskets

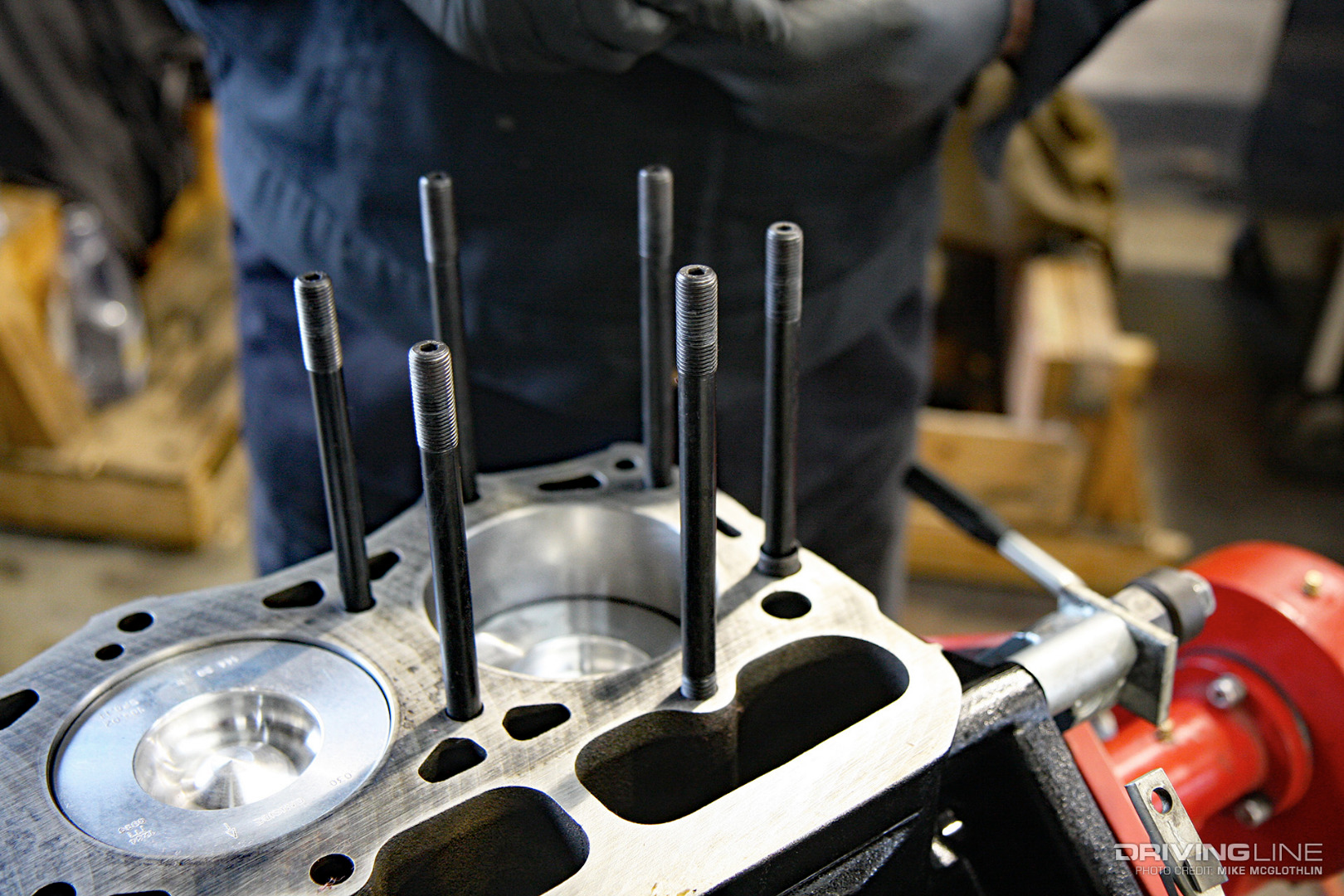

Head Studs Ford Power Stroke Diesel

Like the medium duty engines Navistar produced at the time (such as the DT466E), the 7.3L featured six head bolts per cylinder. This type of head-to-block overkill means that one of the last things you’ll see on a 7.3L is a blown head gasket. In the diesel aftermarket, the stock head bolts’ clamping force has proven sufficient with as much as 40 psi of boost in the mix. When the 7.3L Power Stroke debuted, the engine saw less than 20 psi…

They Run Cool

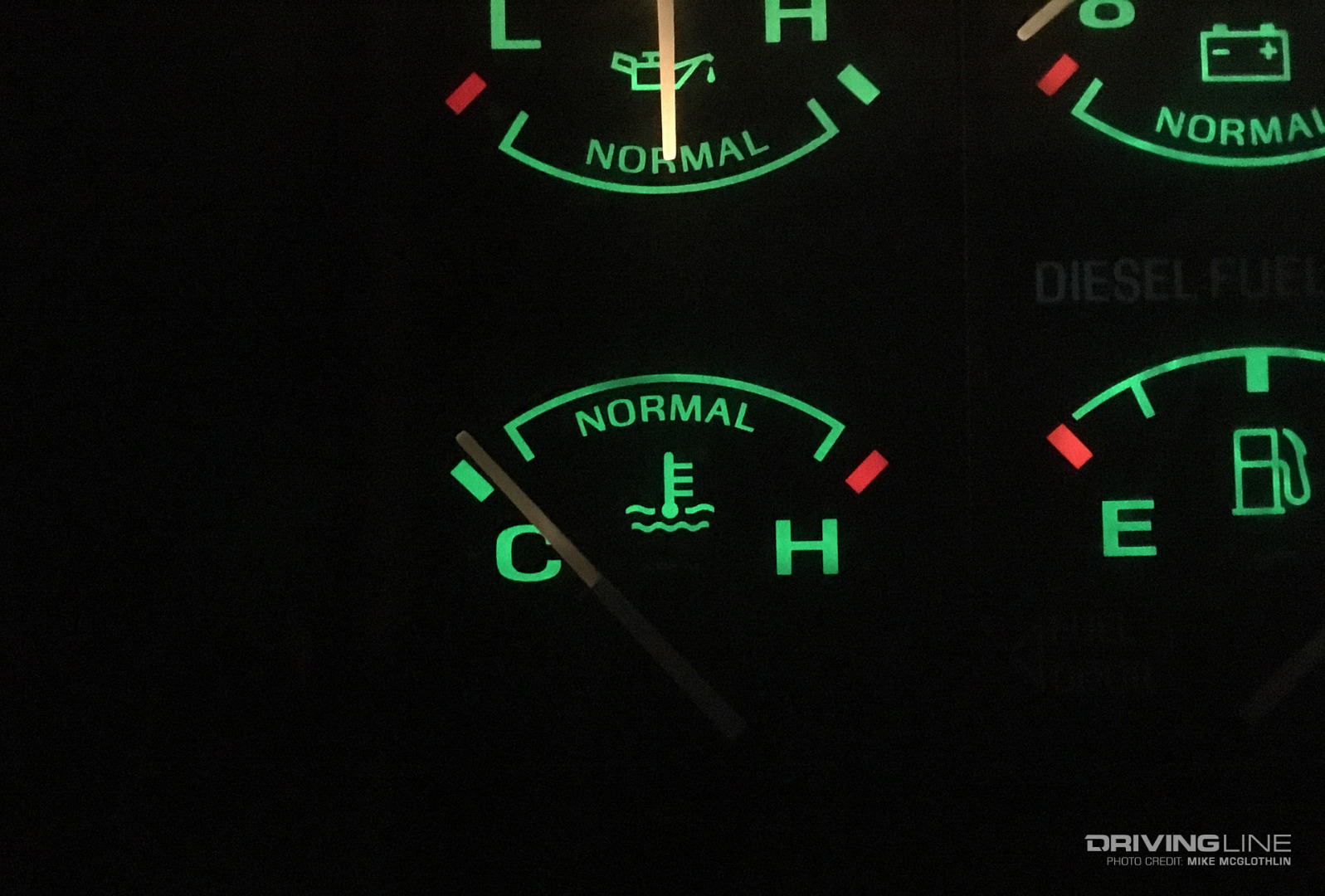

Ford F-350 Water Temp Gauge

In Ford truck applications, the 7.3L Power Stroke never broke a sweat thanks to its overkill cooling system. Flowing 80 gallons per minute, it called for 12 quarts of coolant, came with a massive radiator and had a rock-solid reliable mechanical fan clutch positioned in front of it. On the exhaust gas temperature (EGT) side of the equation, heat was kept in check on non-intercooled engines (’94.5-‘97) through limited injector size and available fueling. When the ’99 model year 7.3L was released with a factory intercooler, it was virtually impossible to subject the engine to more than 1,200 degrees F.

Easy Breathing (Lack of Emissions Equipment)

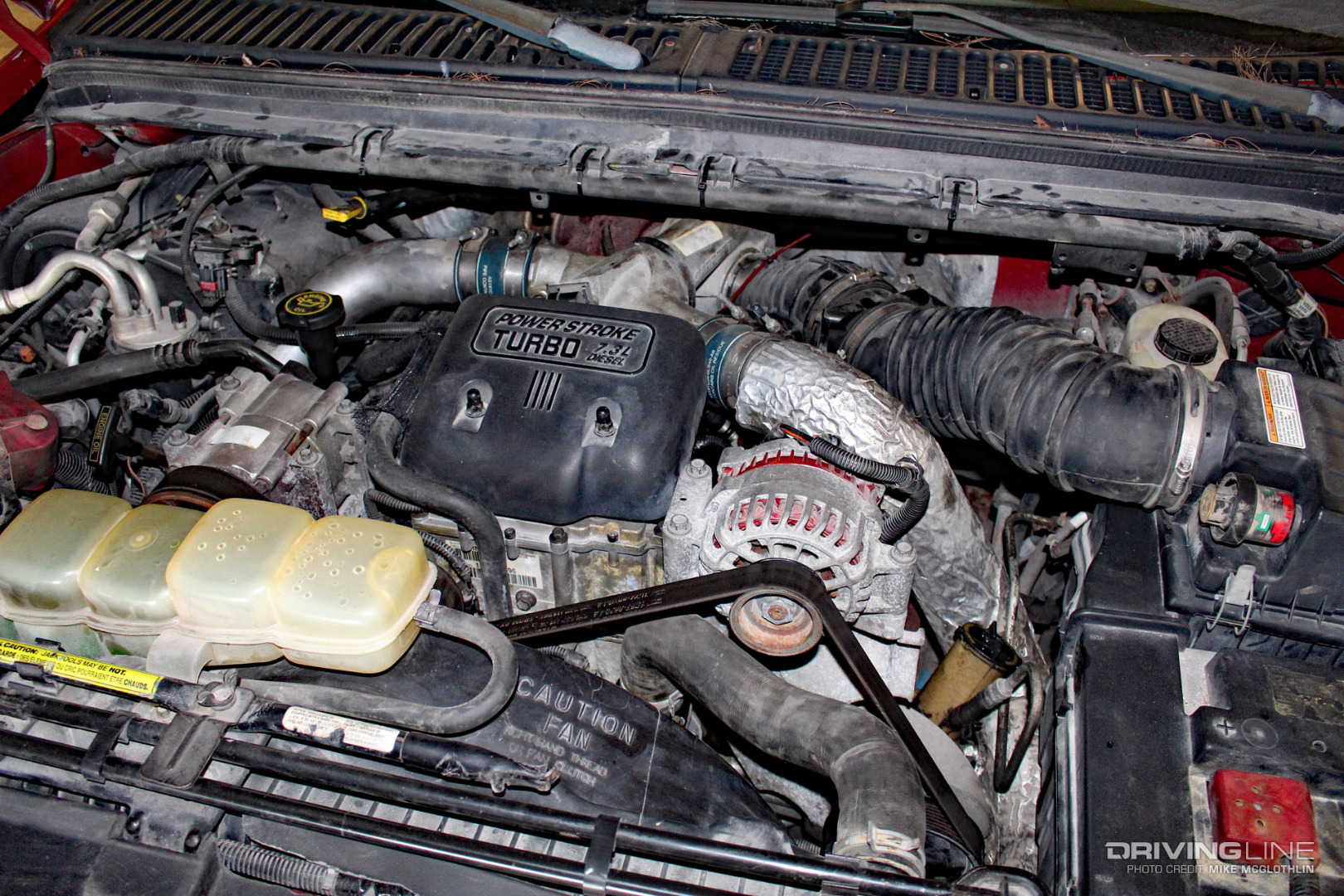

Super Duty 7.3L Power Stroke Diesel

Thanks to the relatively lax emission standards of the day, the 7.3L Power Stroke benefitted from never having been saddled with performance and durability-hindering emissions control devices. In particular, the 7.3L never had to ingest a portion of its own waste through the use of exhaust gas recirculation (EGR), which is what crippled the 6.0L Power Stroke. Had the 7.3L been equipped with EGR, it likely wouldn’t enjoy the same reputation for durability that it does today.

  • Want to know even more about the 7.3L Power Stroke? You can explore its complete history here.
